ui — on-screen UI toolkit

The on-screen UI toolkit: every way we put text, menus, and overlays on a player's screen. Other resources call it instead of re-implementing them, so the look and behaviour stay consistent. It hosts the NUI main menu (the player-facing hub) plus the messaging channels, the egocentric match HUD (objective bar + squad banner + TAB ranked board + kill feed, NUI), and the spectator camera.

The whole toolkit is NUI (HTML/CSS/JS): main menu, in-match HUD/board/kill feed, and every messaging channel. Nothing draws with GTA natives anymore — and the stock GTA chrome (radar, HUD widgets, native pause menu) is suppressed everywhere by the toolkit. The exports.ui:* API is the stable seam.

It exposes the same API on the client and the server:

• Client functions act on the local player: exports.ui:notify('Hi').
• Server functions take a target first (a player server id, or -1 for everyone) and forward the call over the network: exports.ui:notify(src, 'Hi').

Which channel for what

Rule of thumb: persistent state (score, timer) belongs in a per-frame HUD, not here. This library is for events and prompts.

Tones

GTA colour codes (~r~ …) are dead. Meaning travels as a tone on the payload: info (default) · success · warn · danger · you. The NUI maps a tone to the design-token accent (left border on notifications, tint on the big-message shard). Example: { tone = 'danger', message = 'Out of bounds!' }.

Client API

Every channel takes a plain string for the common case, or a table for the full shape; nil hides the persistent ones (subtitle, help).

exports.ui:notify(n)                 -- string, or { tone, icon, title, message, duration }
exports.ui:subtitle(text, ms)        -- bottom line (ms default 3500; 0 = sticky; nil text hides)
exports.ui:help(h)                   -- { title?, rows = { { keys = {'TAB'}, label = '…' } } }; nil hides
exports.ui:bigMessage(b, ms)         -- string, or { eyebrow, title, subtitle, tone } (ms default 4000)
exports.ui:countdown(seconds, onGo)  -- 3->2->1->GO with beeps; calls onGo() at GO
exports.ui:playSound(name, set)      -- frontend sound (audio stays native)

Example — client side:

exports.ui:notify({ tone = 'success', message = 'Loadout received' })
exports.ui:countdown(3, function()
    -- runs locally when the countdown hits GO
    enableControls()
end)

Main menu (NUI)

The player-facing menu is an NUI overlay (HTML/CSS/JS, vanilla — no build step). It replaces the old native role-select as the menu the player sees. lobby opens it on spawn and on the menu key (M).

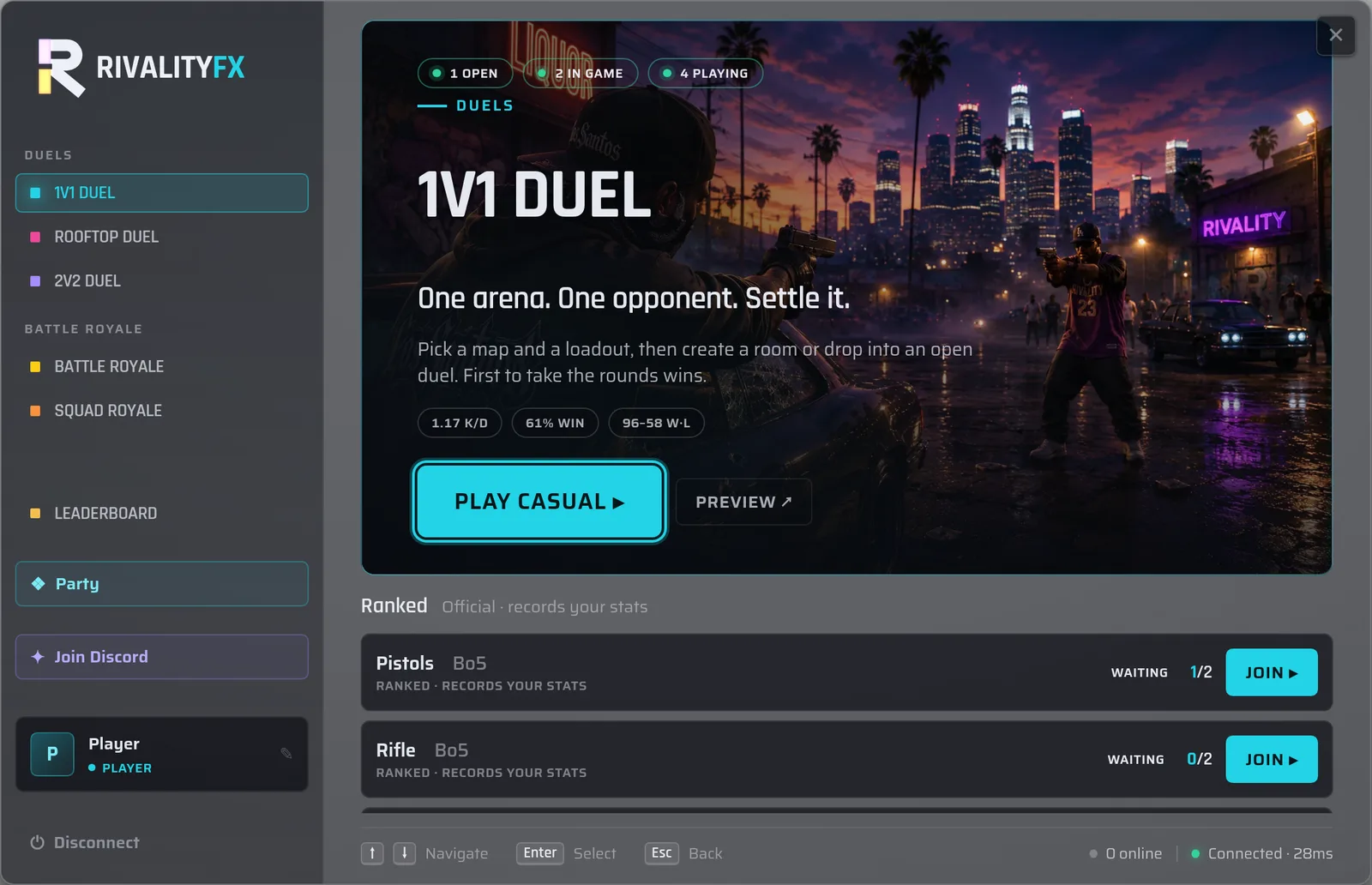

The menu lands on the selected mode's cover: its splash art (present.hero), live activity badges (open / in game / playing), your ranked record, a Play casual button into the casual arena browser, and the mode's ranked slots. The left rail is the mode selector; Preview links out to the mode's page.

exports.ui:openMainMenu()    -- show the menu + capture mouse/keyboard (NUI focus)
exports.ui:closeMainMenu()   -- hide the menu + release input focus
exports.ui:isMainMenuOpen()  -- returns a bool

While open it takes NUI focus (mouse + keyboard) and suppresses GTA's pause controls so ESC is delivered to the page (to step back / close) instead of opening the pause menu.

Message contract (Lua ↔ page)

The Lua client and the NUI page talk over a thin bridge (exposed as window.RfxBridge):

post(name, data) targets the page's own resource (ui). A NUI page may also call another resource's callback with RfxBridge.postTo(resource, name, data) — the Appearance screen uses it to reach the customization module (postTo('customization', …)).

Live data

The menu is wired to the engine: the lobby snapshot drives the mode covers (hero + live pop badges), the casual arena browser, the per-mode ranked slots, the create-form options, and the player profile; the arena intents (arenaCreate / arenaJoin / arenaLeave / arenaSpectate / arenaDelete) forward to the engine:arena:* net events (lobby contract). The page keeps bundled mock data only as a browser-preview fallback (opening the page outside FiveM).

Profile & rights. PROFILE = { name, rank, tier, initials } is built per player server-side by the engine (in the lobby snapshot) from FiveM only — no DB: name from GetPlayerName, tier from ACE perms (player < vip < staff < admin, mapping is admin config — see config), rank a label from the tier. The page reads PROFILE.tier to gate the locked modes, Private arenas and the Staff console. Career stats (K/D + W/L/D, per mode) ARE persisted now — a license-keyed server-KVP store rides along in PROFILE.stats, and the active mode's cover renders your record chips. (tier/ rank stay live-derived from ACE, never persisted.)

Presentation knobs (panel vs full-screen chrome, the dev "View as" rights switcher) are static config on the ui resource — see config.

Dialog (toolkit primitive)

A standalone confirm / prompt / choice modal, independent of the main menu, so the engine or any resource can ask the player something at any time — including mid-match, where the menu is suppressed. It renders on its own NUI surface and takes NUI focus while shown. This is the toolkit's interaction primitive.

Options (plain data — identical on client, server, and page):

Result (passed to the callback):

Client — ask the local player

exports.ui:dialog({
    kind = 'confirm', tone = 'danger',
    title = 'Forfeit the match?',
    message = 'Your opponent takes the win.',
    confirm = { label = 'Forfeit' }, cancel = { label = 'Keep playing' },
}, function(res)
    if res.ok then TriggerServerEvent('engine:forfeit') end
end)

Only one dialog shows at a time; opening another supersedes the first (which resolves { ok = false }).

Server — ask ONE player, get the answer back

The result round-trips over the network by request id (a callback can't cross the network — same reason as countdown's onGo). Target a single player id; to ask several players, call it once per player.

exports.ui:dialog(src, {
    kind = 'confirm', title = 'Victory -- run it back?',
    message = 'Final score 5-3. Rematch?',
    confirm = { label = 'Rematch' }, cancel = { label = 'Leave' },
    dismissable = false,
}, function(res)
    if res.ok then --[[ rematch ]] else --[[ they left ]] end
end)

A player who disconnects before answering resolves as { ok = false, disconnected = true }.

Dev/QA: /uidialog [confirm|prompt|choice] opens a test dialog and notifies its result, so you can eyeball the primitive without a full match.

Party panel

A focused, lightweight group surface, separate from the main menu: a player opens it with a key (Config.partyKey, default G, rebindable in FiveM's Settings) to invite friends, see the squad, kick (owner) and leave. Parties are invite-first and grow organically — a solo player invites someone, they accept, and the party materializes (the inviter is the owner); the owner keeps inviting up to rfx_group_max. Non-owner members can only leave.

• The always-on lobby status widget (bottom-right) glances the state — "Inviting X…" then the squad roster — passively; it has no input focus, so all management happens on the panel.
• An inbound invite pops a focused Accept/Decline prompt via the standalone Dialog, so the invitee answers without opening anything.
• Playing as a party is the normal team-mode flow: the owner joins a team-mode arena and the server places the whole party on one team.

Like the dialog, the panel is a standalone surface: the Lua side handles focus, the key bind and the inbound-invite prompt; the panel itself renders on its own NUI surface.

Server API

First argument is the target: a player server id, or -1 for everyone.

exports.ui:notify(target, n)         -- string or { tone, title, message, … }
exports.ui:subtitle(target, text, ms)
exports.ui:help(target, h)
exports.ui:bigMessage(target, b, ms) -- string or { eyebrow, title, subtitle, tone }
exports.ui:countdown(target, seconds)
exports.ui:setHud(target, data)      -- objective bar + squad banner (nil hides)
exports.ui:setBoard(target, data)    -- TAB ranked board data (nil clears)
exports.ui:killFeed(target, entry)   -- one kill-feed row (structured)

Example — server side (announce a round start to everyone):

exports.ui:notify(-1, 'Round starting in 3s')
exports.ui:countdown(-1, 3)
-- ...then run the round logic ~4s later (3s + the GO frame)

The countdown callback (onGo) only exists on the client — callbacks can't cross the network. From the server, trigger the countdown for the visual, and schedule your own server-side logic for when it ends.

Egocentric match HUD (NUI screen)

The in-match overlay — one mould for every squads layout (1v1 / 2v2 / NvN). The payloads are EGOCENTRIC and carry no team identity: you + your squad anchor the view, the field (everyone else) is a neutral counter. Colors live in the design tokens ("you" = cyan accent, field = neutral ink), never in the payload. The NUI page renders it; the Lua side is a pure relay. nil data hides an element.

Three always-on pieces plus the TAB board:

• Objective bar (top-center): your score vs the field's, round/phase eyebrow, timer (amber when low), best-of pips, MATCH POINT escalation.
• Squad banner (bottom-left): your squad's state (alive/down/out, "YOU" tag). Hidden for a squad of 1 — in a duel you ARE the counter.
• Ranked board (hold TAB): ONE ranking of squads — rank, alive dots, score, colour-coded best ping (green < 60, amber < 120, red otherwise) — no team columns. The weapon wheel is suppressed while held. Data is pushed on the scoreboard cadence whether or not the board is open; the NUI caches it so opening is instant.

exports.ui:setHud(target, {
    round = 'ROUND 4', timer = '1:23', timerLow = false,   -- center cell
    you   = { label = 'YOU',      score = 2, target = 5 }, -- target nil = no cap
    field = { label = 'BADKARMA', score = 1, sub = nil },  -- sub e.g. '3 alive'
    squad = { { name = 'Sahid', alive = true, you = true } }, -- ≤1 → banner hidden
    -- neutral = true                                      -- spectator view (no "you")
})

exports.ui:setBoard(target, {
    title = '1v1 Duel', sub = 'Warehouse',
    metaLabel = 'First to', metaValue = '5',
    unit = 'player',                       -- 'player' (1v1) or 'squad'
    squads = {
        { name = 'Sahid', you = true, score = 2, ping = 24,
          members = { { name = 'Sahid', alive = true, you = true } } },
        { name = 'BadKarma', score = 1, ping = 51,
          members = { { name = 'BadKarma', alive = false } } },
    },
})

Kill feed (NUI screen)

Recent rows, top-right, fading after ~5s. Structured entries — the relation is relative to the viewer (rel: 'you' | 'ally' | 'enemy', omitted = neutral); "you"/"ally" render in the accent, the enemy stays neutral ink. No killer = a plain "died" row.

exports.ui:killFeed(target, {
    killer = { name = 'Sahid', rel = 'you' },    -- nil for a no-killer death
    victim = { name = 'Bob' },
    -- weapon = 'Carbine', headshot = true       -- optional (not sent yet)
})

Spectator (screen)

A camera that follows one of a list of players; the arrow keys cycle. Client-driven:

exports.ui:startSpectate({ 3, 7, 12 })   -- server ids to follow
exports.ui:stopSpectate()

Appearance — cosmetic locker (NUI screen)

A screen inside the NUI main menu with two cosmetic axes on a Skins | Weapons toggle: appearances — ped skins and freemode outfits, one shared catalogue — and weapon wraps (kind='weaponTex', a global weapon tint). Each is pack tabs + search/filter + a card grid + a sticky equip bar; locked packs swap the grid for an unlock panel. It owns no cosmetic logic — it renders a catalog and sends the player's picks to the customization module over the cross-resource bridge (Bridge.postTo('customization', …)): getCatalog (appearances) / getWraps (wraps) / preview / select / revert. Rights (locked/VIP packs) are gated from the player's PROFILE.tier; the equip itself is server-authoritative. See customization for the catalog, exports, and persistence.

Scaling — proportional to the client's resolution

The whole NUI is rem-based, and the root font-size (set by the design tokens) is the single master scale. It is anchored to the client's vertical resolution (100vh), never width:

root_px = 100vh * (--ui-ref-root / --ui-ref-h) * --ui-scale
        ≈ 20px @ 720p · 30px @ 1080p · 40px @ 1440p · 60px @ 4K   (--ui-scale 1)

Consequences, by design:

• Proportional to resolution — the UI keeps the same fraction of the screen at any resolution. There is no upper cap; a small floor (--ui-min-root, 18px) only protects legibility in tiny dev/preview windows.
• Aspect-stable — height-anchored, so a 21:9 / 32:9 ultrawide gets the same-size UI as a 16:9 screen of equal height (the menu panel centers with more empty side margin instead of stretching). Because 1rem is now itself a resolution-proportional unit, components size in rem; viewport units appear only as min()/max() overflow guards for narrow windows.

Config tiers (see Server configuration):

• --ui-ref-h / --ui-ref-root — the design baseline (root = 30px @ 1080p). Structural invariants — change them only to re-baseline the whole system.
• --ui-scale — static config, the server owner's master knob (1 = design size; raise for a bigger UI, lower for denser). Edit in the design tokens.
• A per-player override seam is reserved (client KVP rfx:pref:ui_scale, same pattern as rfx:pref:skin) but is deliberately not wired yet (player prefs are DEFERRED).

Architecture

Internally the toolkit is split one concern per file behind the exports.ui:* seam: a server-side mirror of the exports, client relays per channel (messages, dialog, HUD, party, spectator) and the GTA-chrome suppression, plus the vanilla NUI app they drive over the bridge. A piece that needs a shared helper (e.g. sounds) reaches it through the export (exports.ui:playSound(...)) rather than duplicating it. Consumers only ever touch the exports — the internal split is not part of the contract and may change between releases.

How it's wired

• The client registers the real functions and exposes them with exports(...).
• The client also listens to ui:* net events so the server can push a message to a specific player or to all.
• The server exports are thin wrappers that just TriggerClientEvent('ui:*', target, ...).

To use it from another resource, add a dependency in that resource's manifest:

dependency 'ui'
